HB Tansu #3-Progress 17

hb_tansu-002My high hopes from yesterday for building the remaining three drawers, were quickly dashed this morning.  I could have sworn that I had enough 1/2″ stock remaining for the last of the drawers.  Alas, I was mistaken and a different form of swearing took place.  Instead of making a trip to town I chose to use the last of the available material to build one drawer and then began work on the drawer bottoms.  I also completed the sliding lid for the drawer/box.  I’ll slip off to Lowes tomorrow on my lunch hour and pick up some 1/2″ stock.

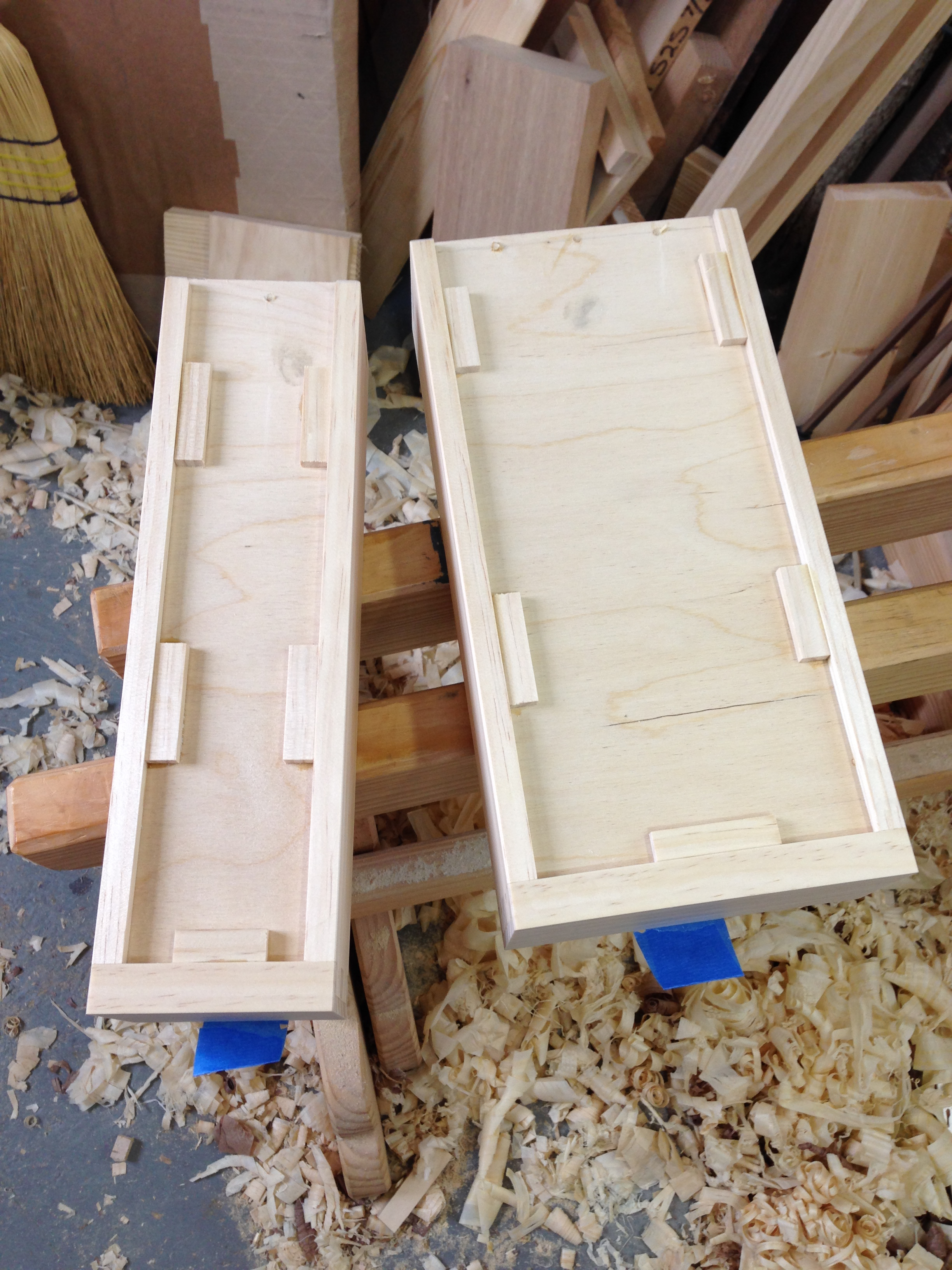

Drawer bottoms aren’t that exciting.  Size to fit and install.  I like to glue the bottom to the drawer front and in a couple of places along the sides.  I can get away with this since the plywood moves very little if any in response to humidity changes.  Bamboo pegs are installed at the rear and then a few glue block are added to the bottom to add rigidity and prevent any rattling.

hbt3-94

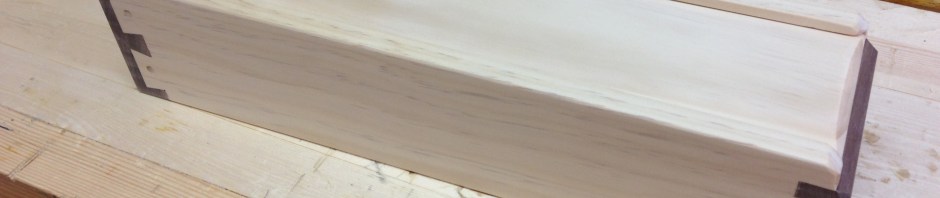

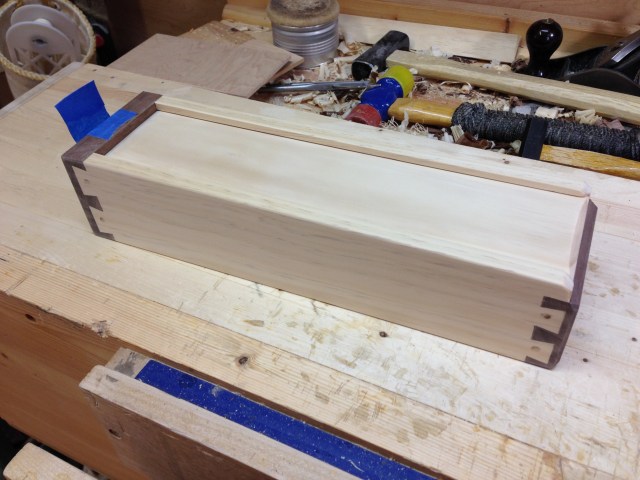

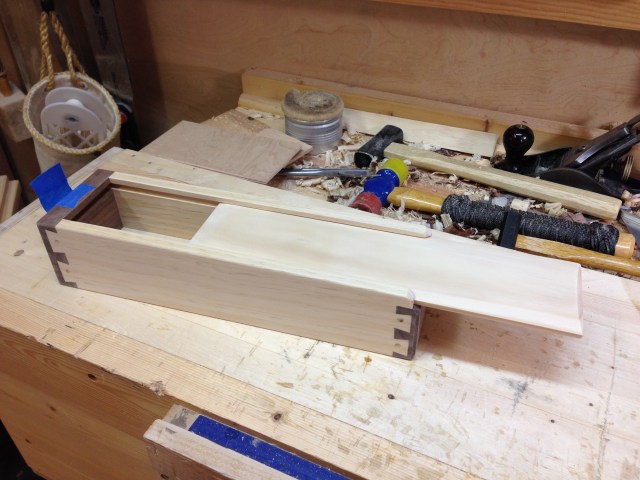

The sliding lid for the drawer/box I made from 1/4″ stock.  I wanted to be sure that the lid would never interfere with the fit of the box into the tansu.  I planed a simple bevel on the lid until it slid freely into the grooves.  Then a little extra shaping of the ends.  The lid still needs a finger nick to make it easy to slide open.  I’ll also be adding some Hillbilly Inlay for decoration.  I’m thinking some sort of walnut theme is in order.

hbt3-95

hbt3-96

Part 16 Greg Merritt Part 18
