Hillbilly Tsuitate Screen-Part 2

hillbilly_tsuitate-000I made a start on the tsuitate screen today.  Starting with a couple of fir 2×4’s I was able to cull all of the parts that I needed and managed to avoid almost all of the knots.  If your going to use 2x construction lumber you might as well get used to the idea of incorporating the occasional knot or two.  Clear, straight-grained lumber can be boring sometimes anyway.  So embrace the knots.  🙂

I’ve read that the greatest insult you can give to a Japanese craftsman is to say that he is a slow worker.  It’s a good thing that I don’t live in Japan.  I wouldn’t be able to bare the shame.  However, I was still able to get all of the pieces, save the feet, milled down to size and squared.  Then I began laying out the joinery.  At first glance, this project looks fairly easy as to the layout.  The one little hiccup is that none of the faces assemble to be coplanar.  So the old standby of gauging from the face side is out the window.  I found it much quicker to just layout all of the joinery with square and ink, working from center lines on each piece.

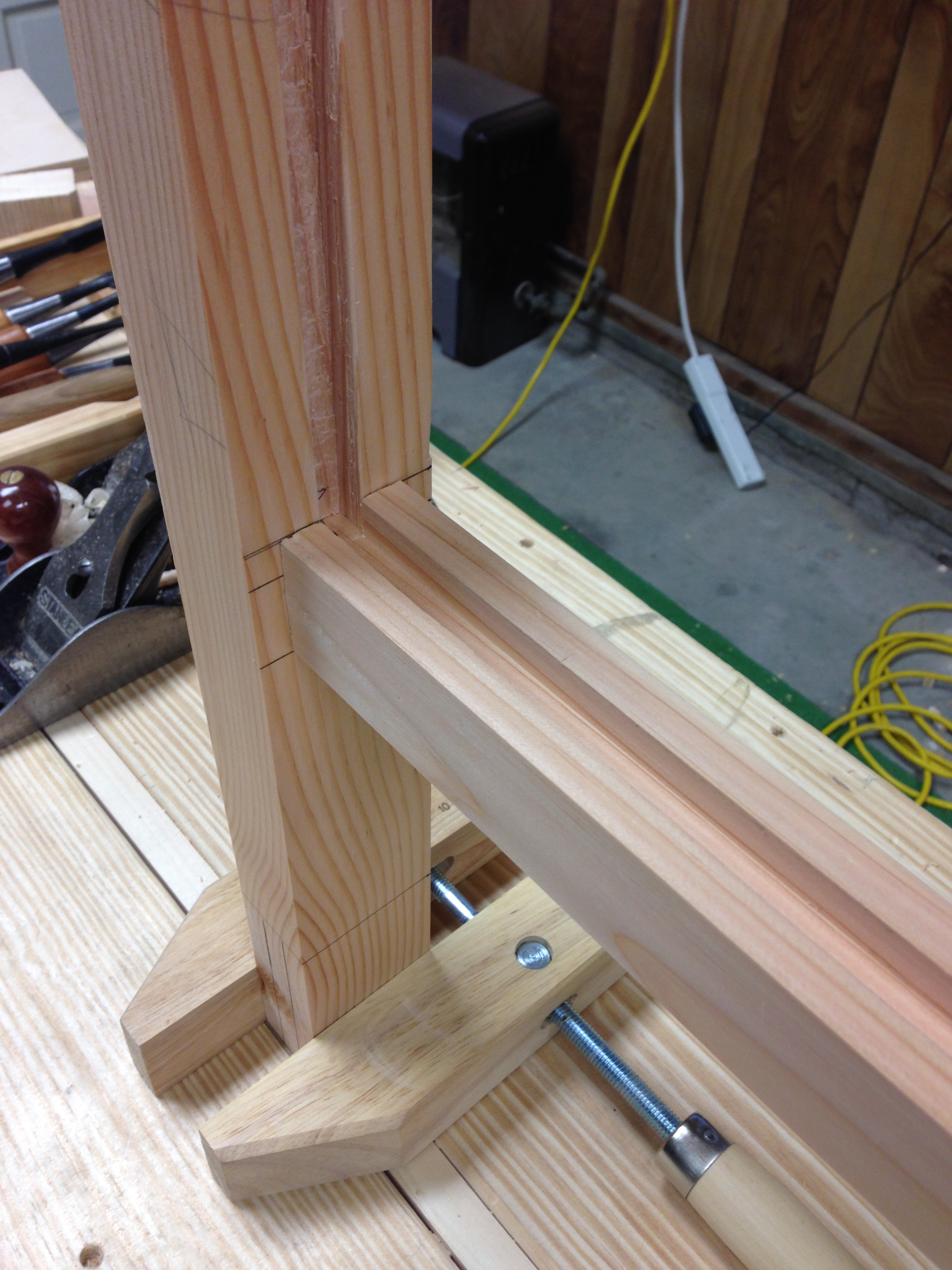

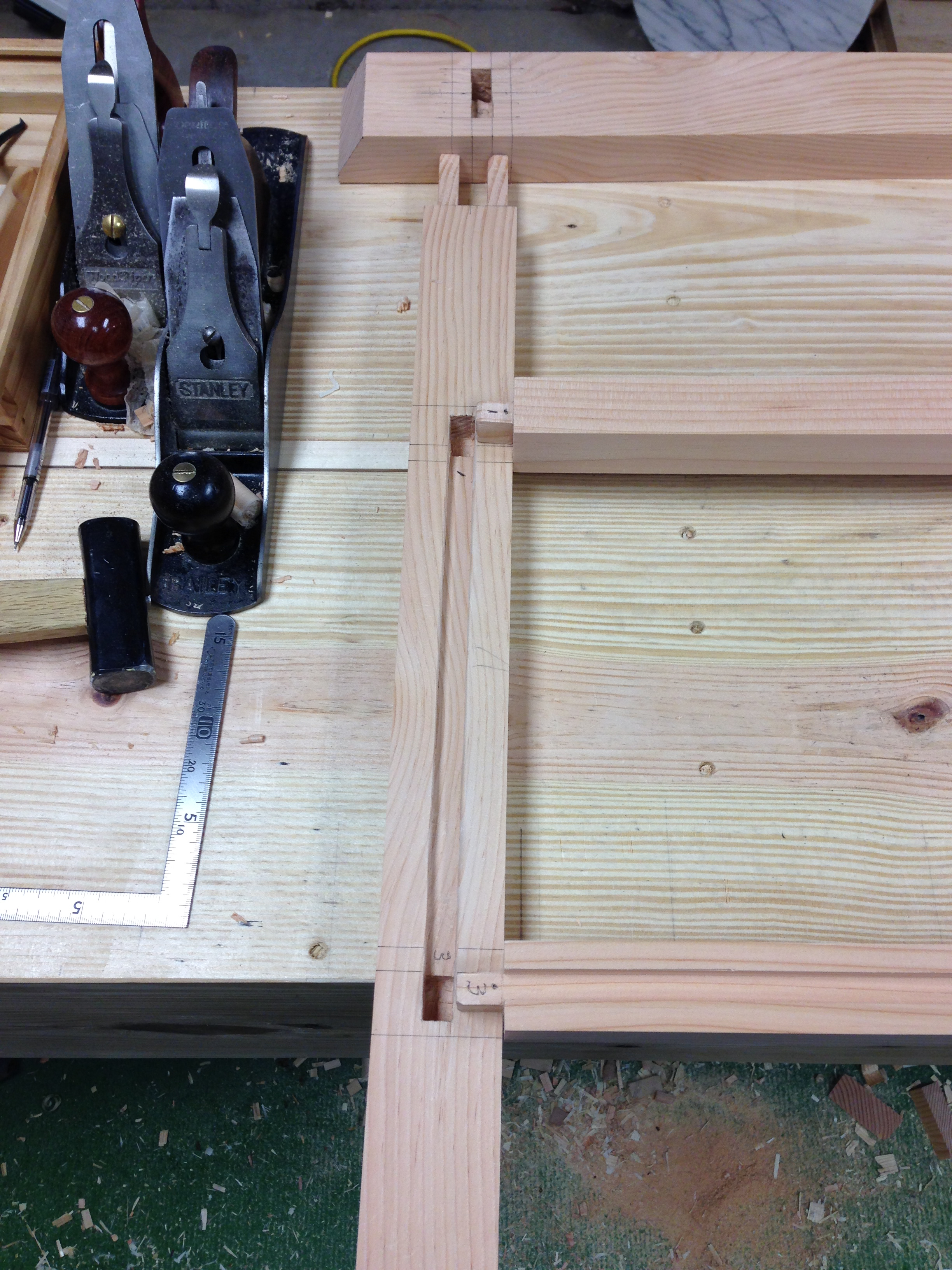

I started with the mortises for the intermediate cross rails.  Then cut the matching tenons. I also added the grooves for the panel that will float between the rails.

IMG_2066

IMG_2073

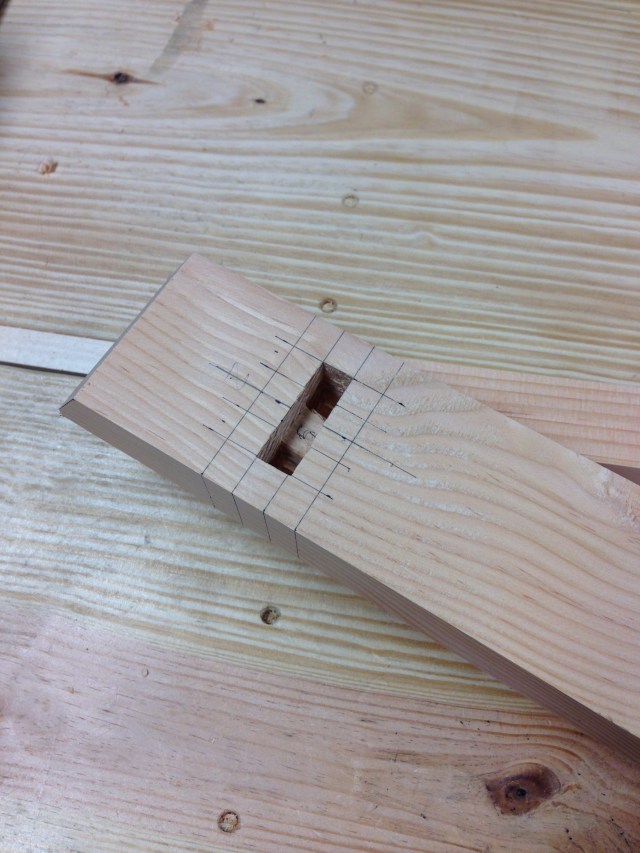

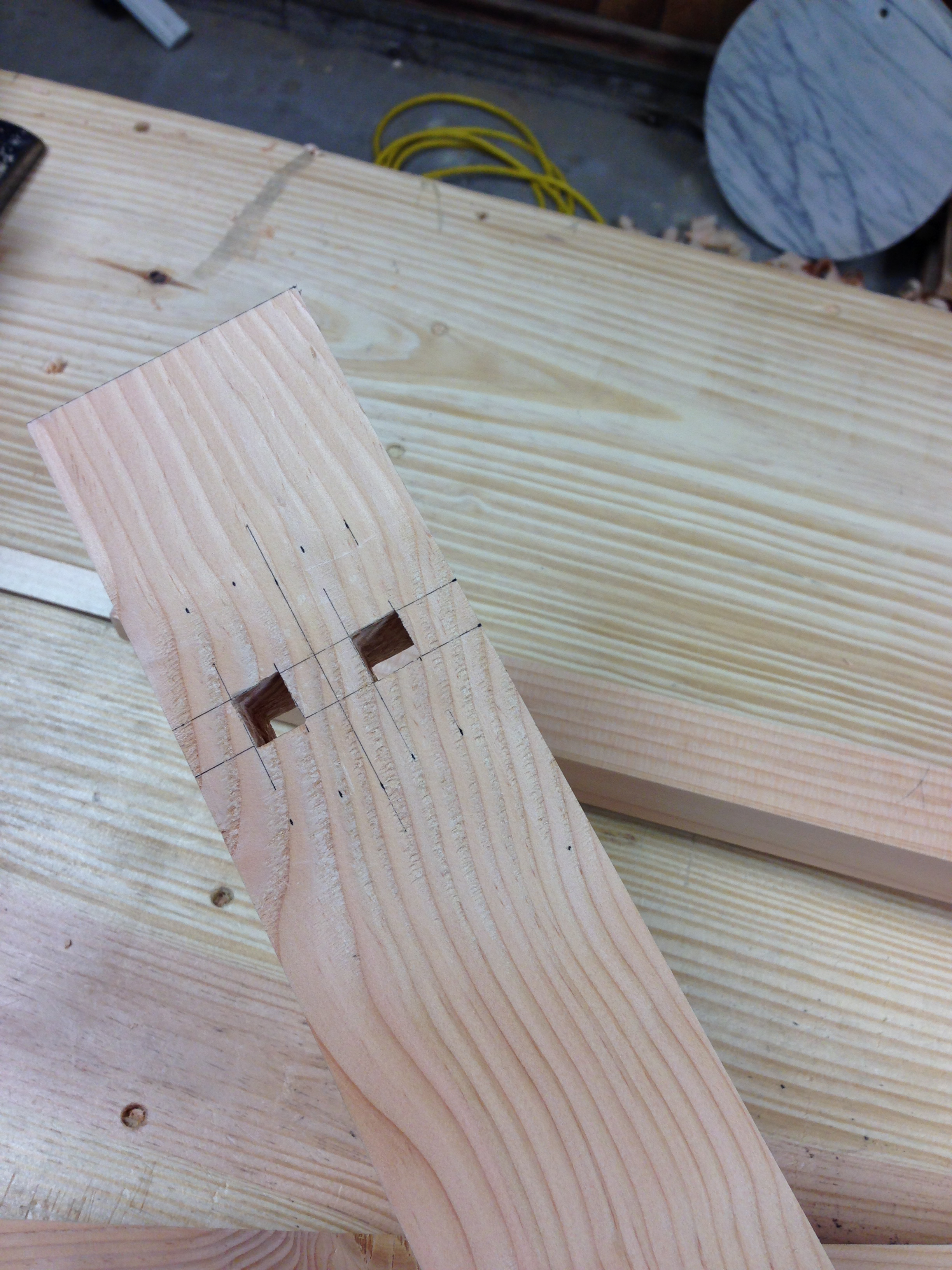

I then laid out the mortises in the top rail.  To attach the uprights to the top rail, I chose to use a stacked twin tenon.  The twin portion will make wedging simpler and should help the upright resist any rotational forces.  Nothing fancy as to execution.  Chop the smaller square portions through and then remove the section the will receive the wider base of the tenon.

IMG_2070

IMG_2069

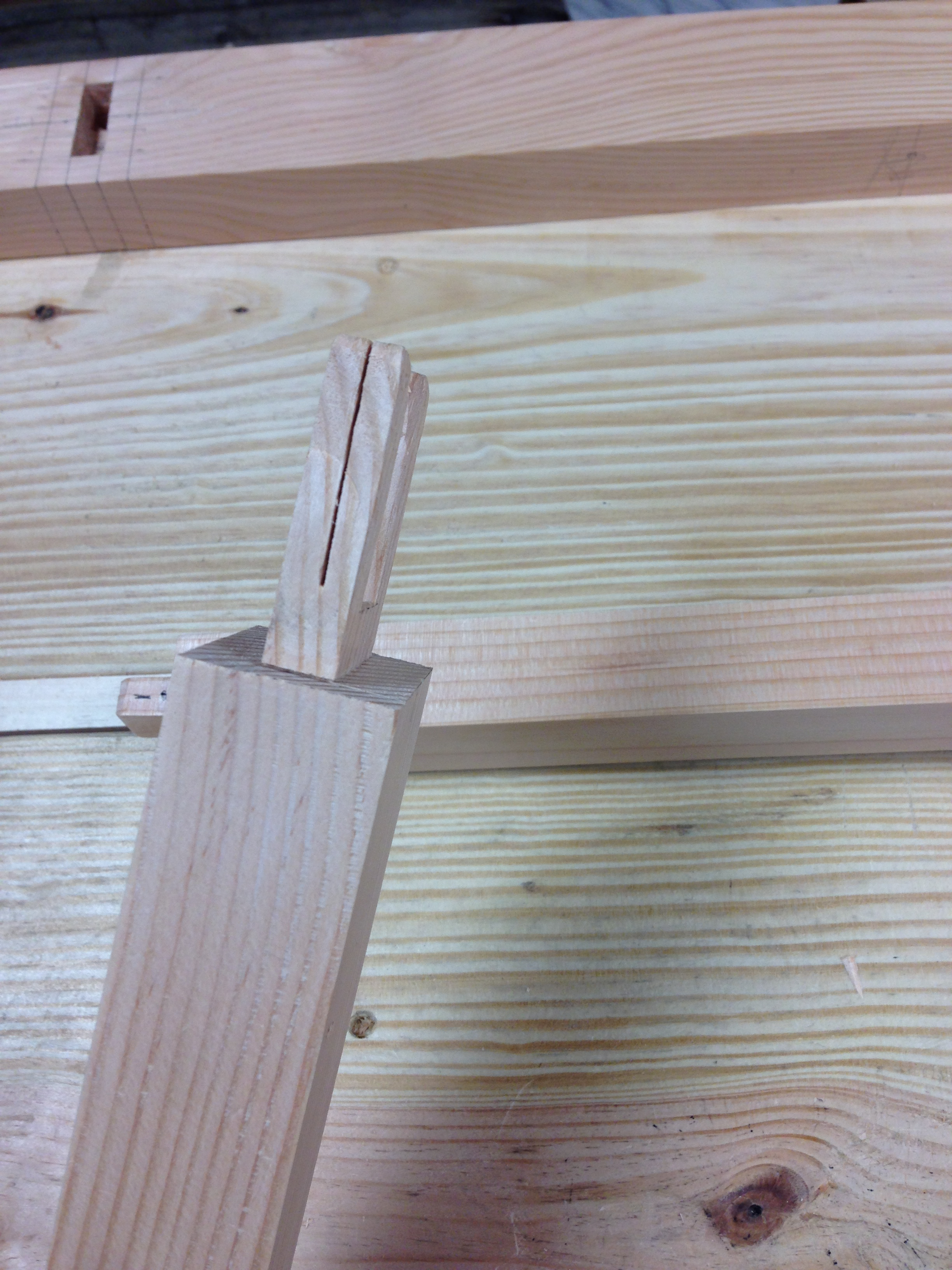

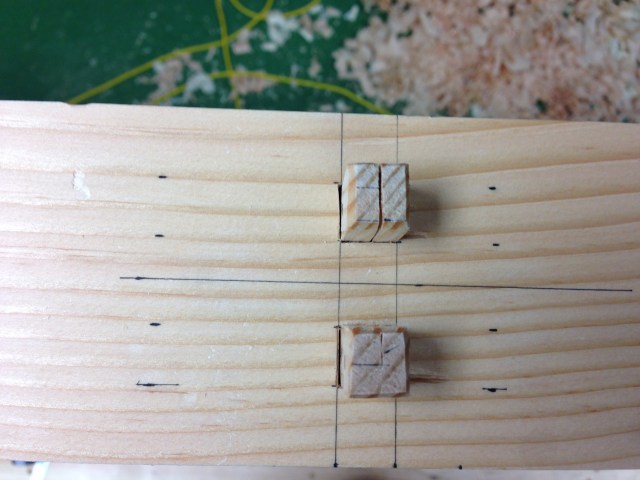

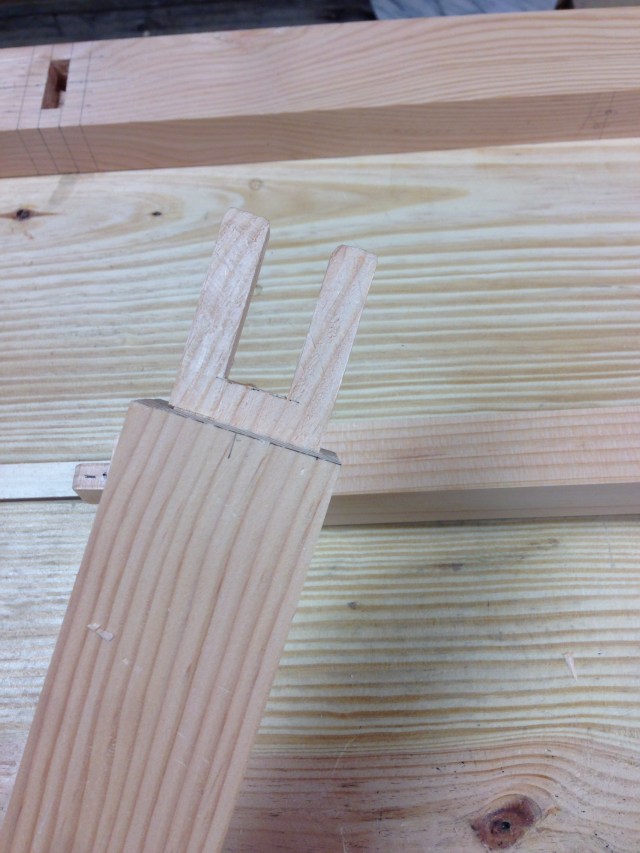

Then I cut the matching tenon.

IMG_2067

IMG_2068

IMG_2072



I like working with this fir but it chips quite easily.  There is quite a density difference between the early and late wood.  A little aggravating, but it will make the uzukrui finish quite dramatic when all is said and done.

IMG_2071

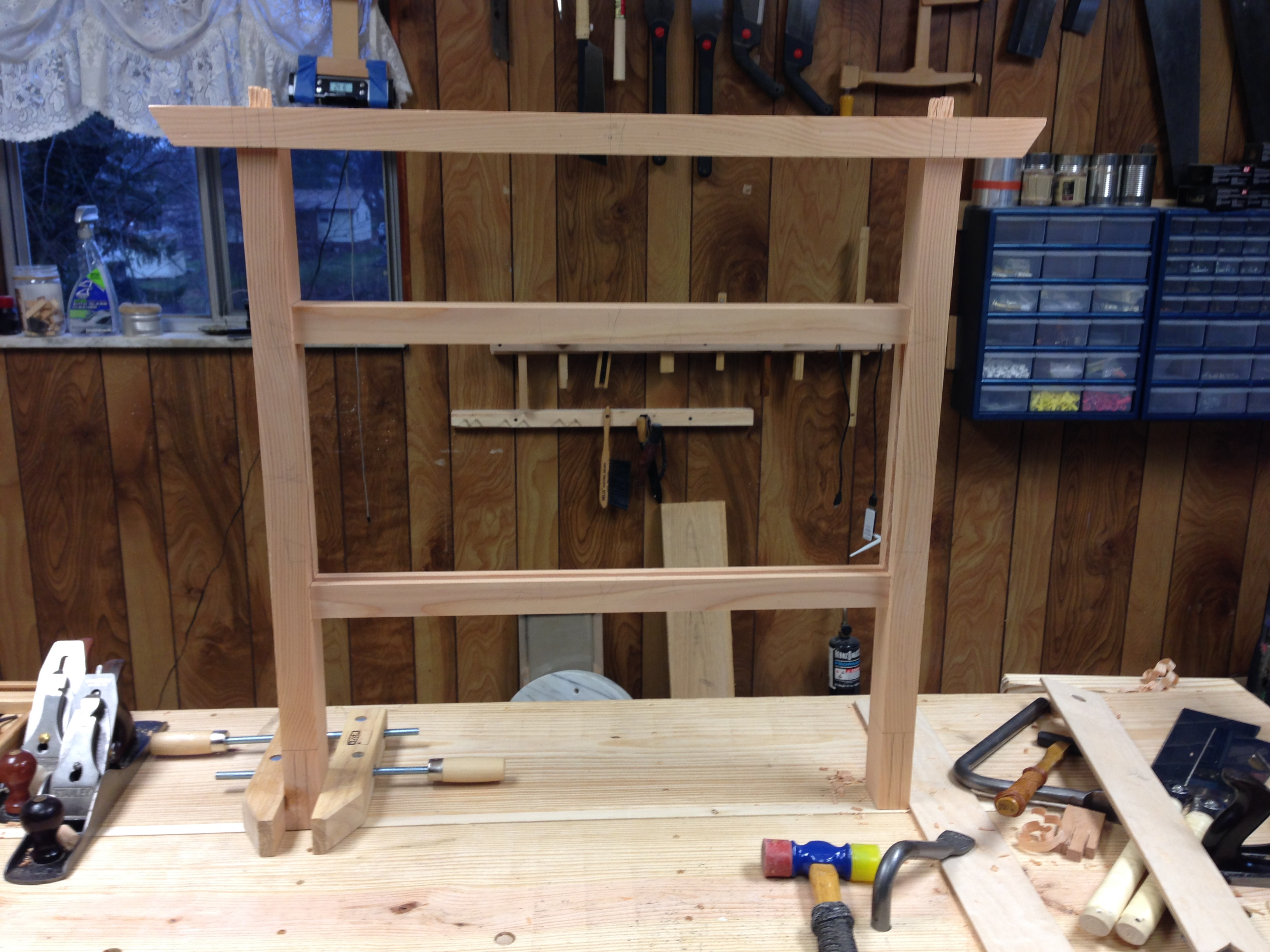

That’s as far as I was able to get today.  It’s a start at least.

Part 1 Greg Merritt Part 3

Advertisements
This entry was posted in Hillbilly Tsuitate-000 and tagged , . Bookmark the permalink.

9 Responses to Hillbilly Tsuitate Screen-Part 2

  1. Pingback: Hillbilly Tsuitate Screen-Part 1 | GREG MERRITT – BY MY OWN HANDS

  2. Wesley Beal says:

    Looking great! I can’t recall if you mentioned in Part 1 what you were going to wedge these tenon’s with?

  3. Wesley Beal says:

    Oh, I’d also like to request an update on how the work bench is treating you as you’re doing this work? Did you saw those tenons at the bench?

    • Greg Merritt says:

      Bench is working out just fine. The planing, plowing and chopping operations went without issue. The bench stop, holdfasts and battens were more than adequate for the tasks.
      Yes, I did saw the tenons at the bench. Just remember that I use Japanese saws. So I wouldn’t use a vise even if I had one. For the rip cuts I hold the workpiece on the top of the bench with my left hand and saw off of the edge. The downward pressure of the pull stroke pins the piece down to the bench top. For the cross grain cuts I use a peg in a dog hole for a stop. Again, holding the piece with my left hand.

  4. Sylvain says:

    How will the bamboo skewers be kept in place?
    My best wishes for next year.
    Sylvain

    • Greg Merritt says:

      I’ll be drilling a series of holes…lots of holes. The skewers are very uniform in size, so a nice friction fit should be easy to obtain.

      Thank you. I hope that you have a fantastic new year as well.
