Side Table-Progress 1

For the handful of you that read this drivel on a regular basis you are probably starting to think that I have developed age-onset ADHD or maybe worse.  First I droned on about nightstands, then a bookcase and now a side table.  Too much time out of the shop but I am now remedying that little problem.  To put the new shop area through its paces I decided to tackle a simple project from the “need” list and that is a side table.  This will be built around the same style and finishing of the end tables that I built last year.  It will be a little lower, a little wider and a little shorter.  Hows that for specifics?  We have two low-setting mid-century chairs in our living room and we need this little table to set between them.  So I took a scrap of wood into the house and marked the desired height and maximum depth on it and went back to the shop.

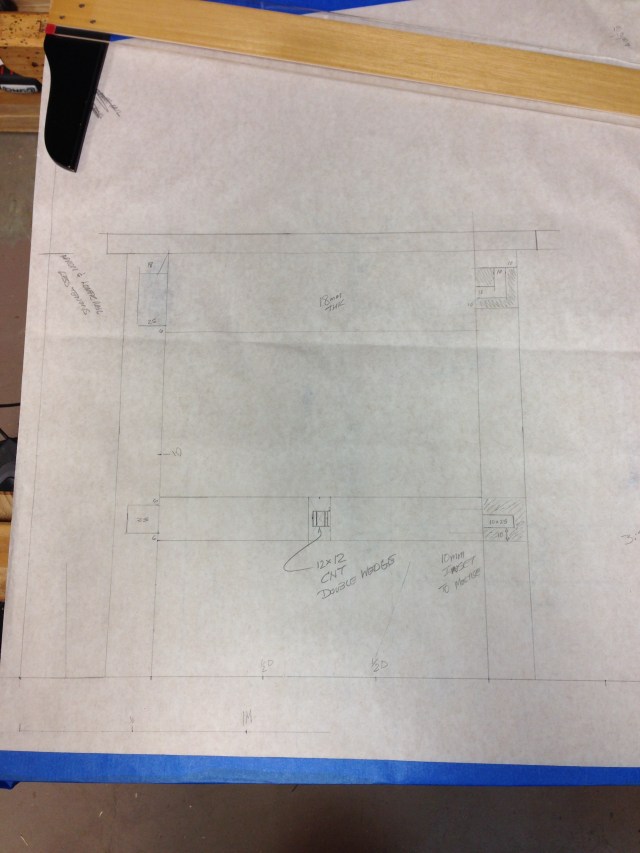

Using the original proportional layout (below) that I used for the end tables, I worked out a full-size end view for this new side table.

side_table_000_sht1of2



side_table - 1

Essentially a 3:4 layout for the end view and a 1:1 layout for the side view.  Three units wide by four units high with a depth of four units or 15″(w)x14″(H)x18″(D) overall.

A quick look through the wood pile and I realized that I had enough stock lying around to build this entire table.  Granted some of that material will be from lumber that I salvaged from a coffee table that I built years ago and has sentimental value.  So after work on Friday I began dimensioning stock, laying out of joinery and I even managed to chop a few mortises.

Here are the legs marked out and ready for the chopping of the mortises.

side_table - 2

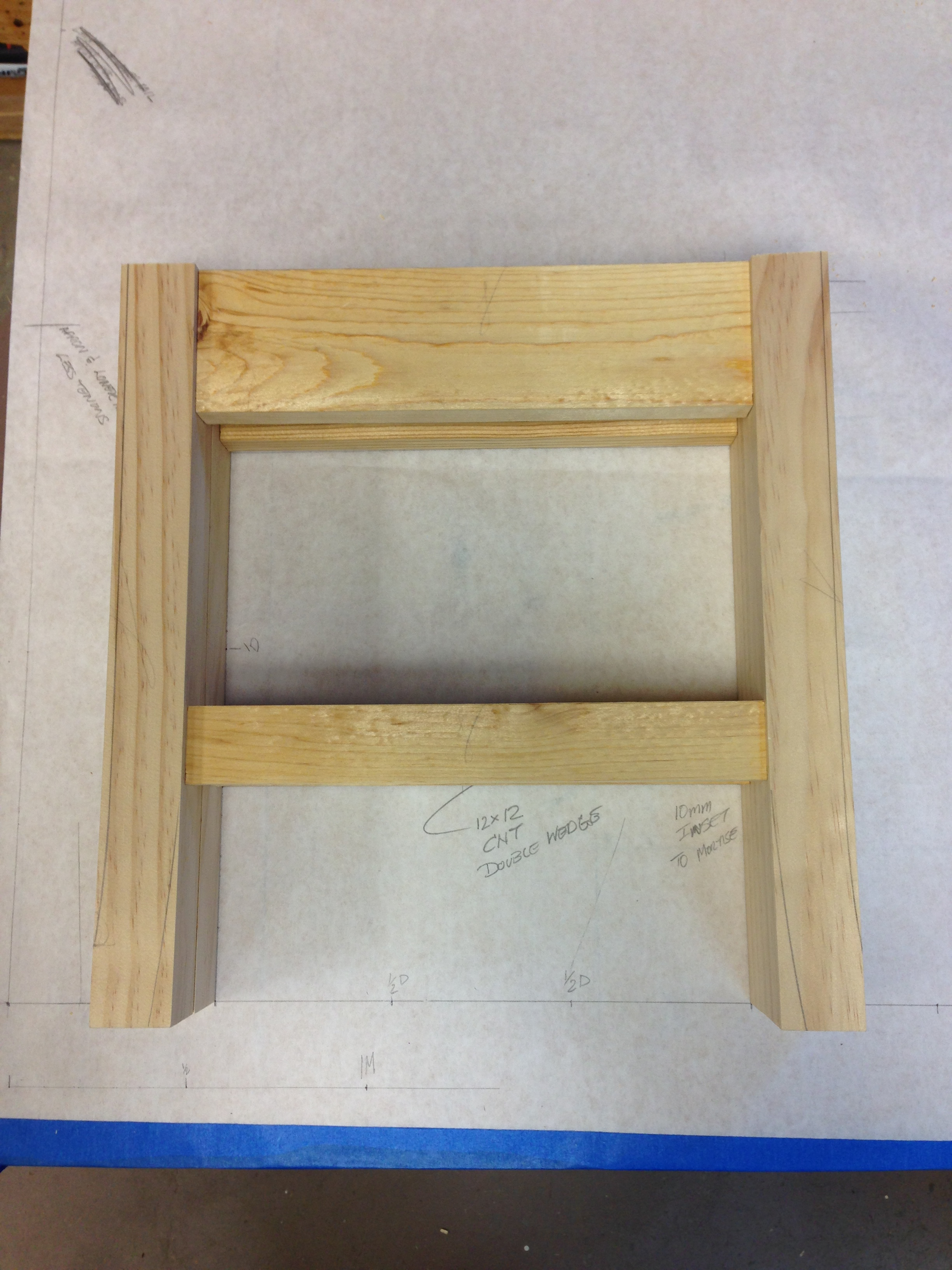

This morning I continued the joinery work and quickly had the end rails fitted to the legs.

side_table - 3

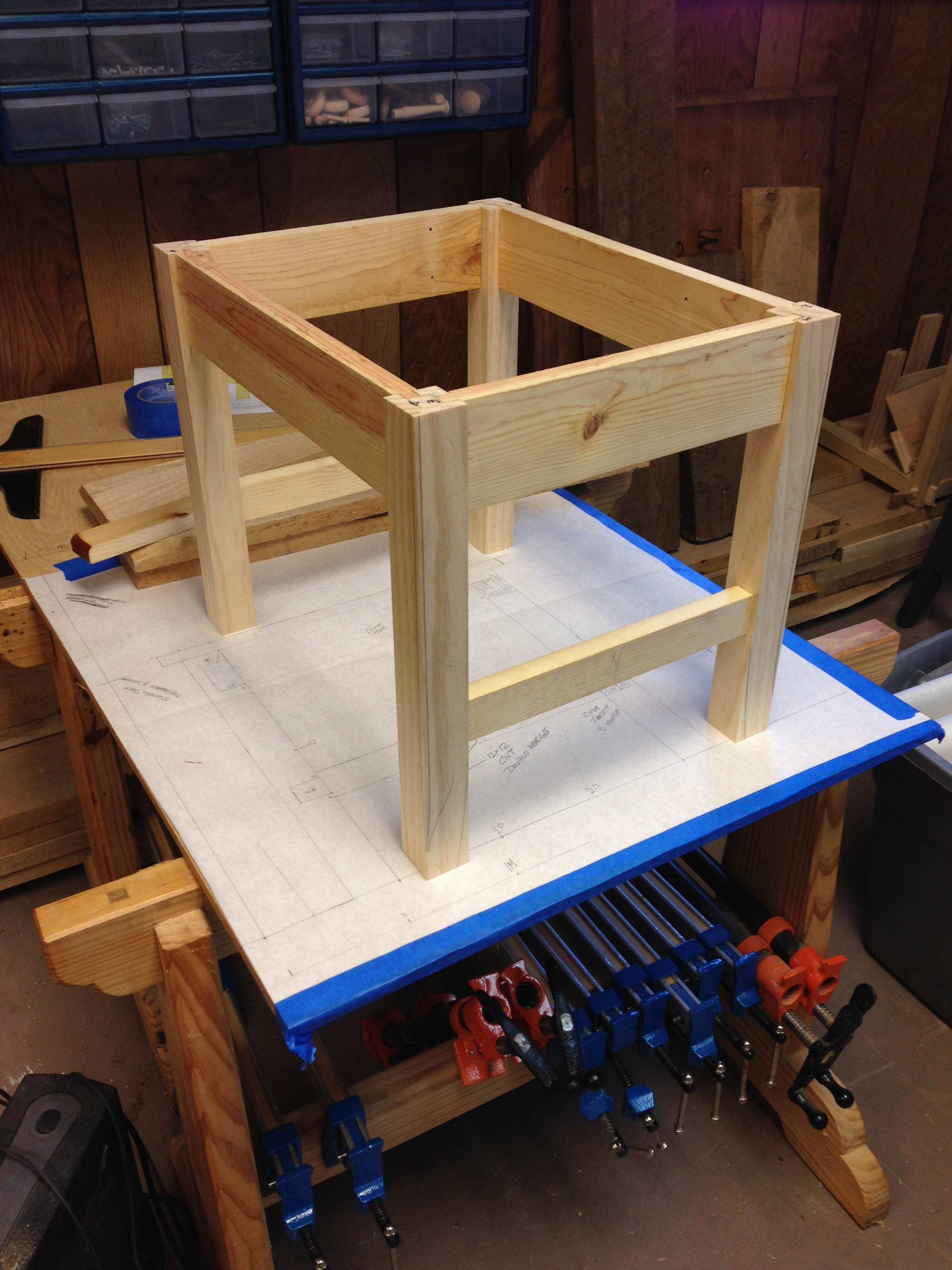

Then the side rails.

side_table - 4

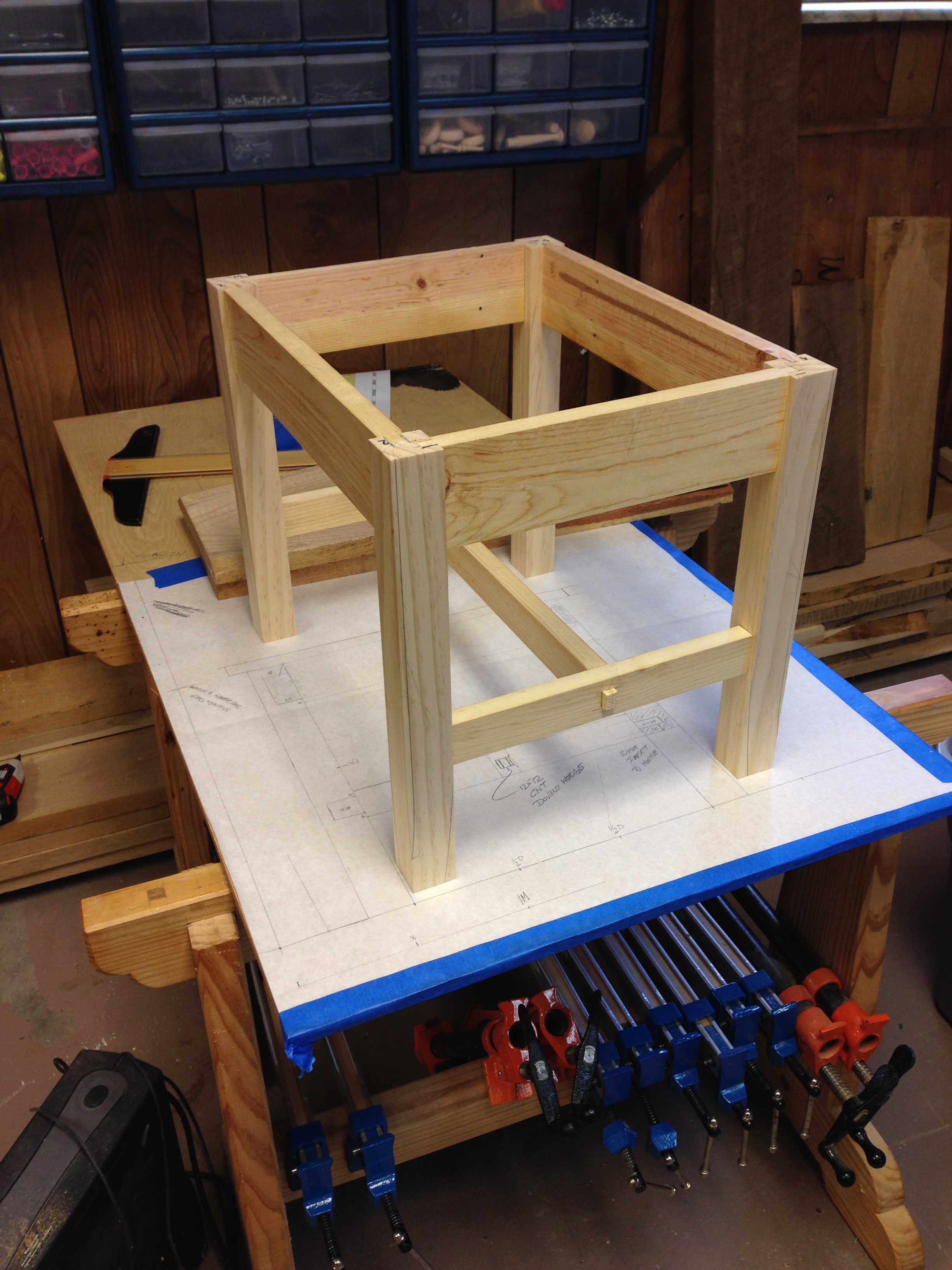

Then the bottom center rail.

side_table - 5

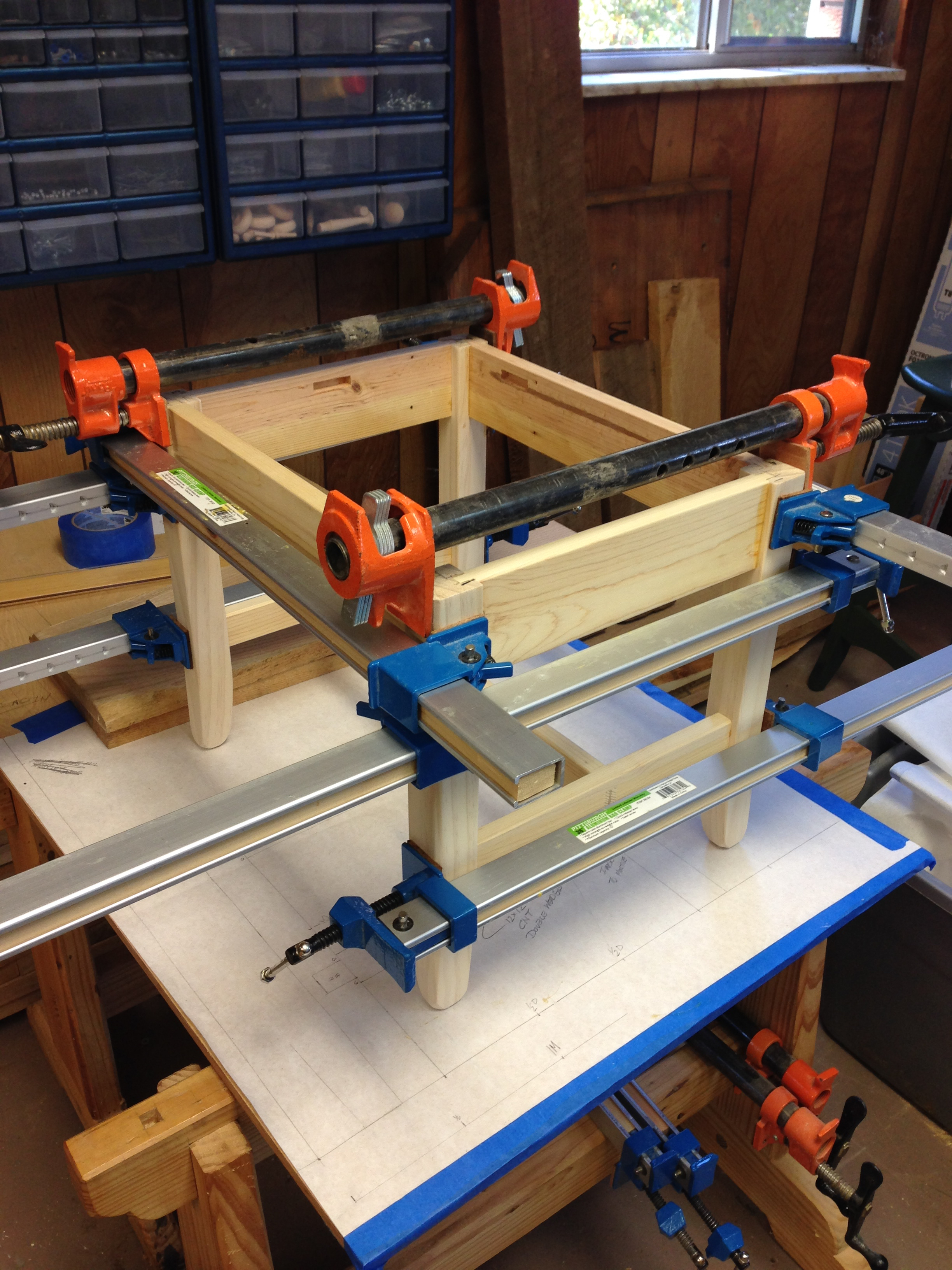

A quick shaping of the legs, slathering on of glue and the assembled base is in the clamps for the night and it’s still daylight outside.

side_table - 6

This next bit will sound like bragging, OK it is a little, but I can’t get over how quickly this went for me.  Less than a full day and I have an assembled table base, albeit a small one.  I do apologize for the lack of “action” photos but I was in a groove and getting used to the new shop space.

Tomorrow I’ll glue up the oak panel for the top and paint the base with a couple of coats of barn red milk paint.

Greg Merritt Part 2
